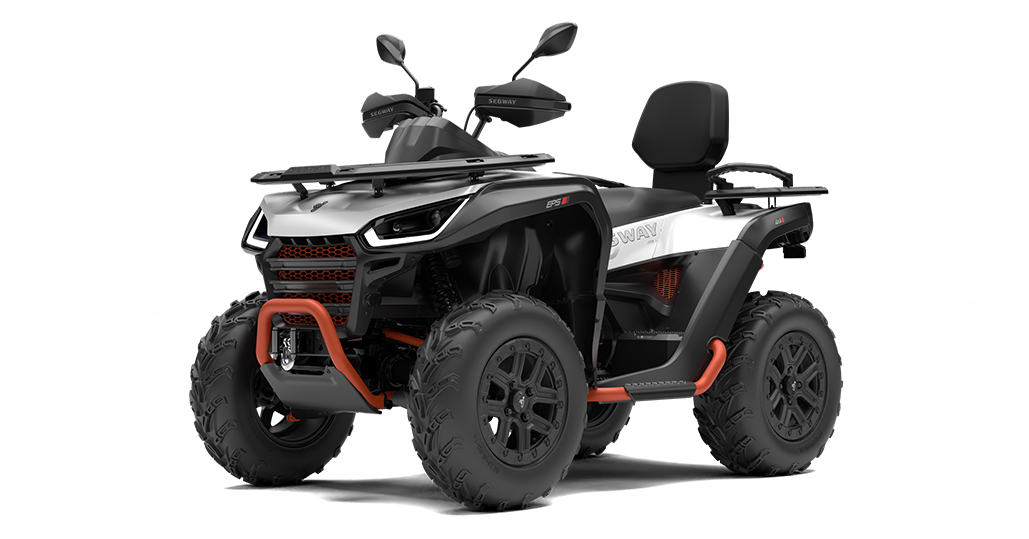

AT6 L
Powertrain&Drivetrain
Engine Braking System（EBS）
Standard
Compression Ratio
10.6
Rear Axle
Rear Diff-Lock (Optional)
Front Axle
Differential Steering
Drive System
On-Demand 2WD / 4WD
Torque
48 N.m
Horsepower
44 hp
Engine/Motor Type
567cc, 4-Stroke Single-Cylinder,DOHC Engine
Powertrain
Fuel Engine
Suspension System
Rear Suspension&Travel
Dual A-Arm; Rear Travel: 8.3" (21cm)
Front Suspension&Travel
Dual A-Arm; Front Travel:7" (18cm)
Shock
Oil Shock/ Air Shock(Optional)
Wheels & Tires
Tires
Front Tires 25 x 8-12 / 26 x 8-12 / 26 x 8-14 (Optional) Rear Tires 25 x 10-12 / 26 x 10-12 / 26 x 10-14 （Optional）
Wheels
Steel(12 inch) / Aluminum(14 inch) with Beadlock Device（Optional）
Smart Moving System
Smart-Moving App
√
Smart Touch Screen
/
Dashboard
Digital Screen
Smart Commanding System(DTU+SDC)
√
Overall Dimensions
Towing Capability
350kg(772lb)(L) 300kg(661lb)(S)
Payload Capacity
270kg(594Ib)(L) 195kg(429Ib)(S)
Bed Box Capacity
/
Front/Rear Rack Capacity
Front: 40kg(88lb) / Rear: 60kg(132lb)
Fuel Capacity
23L(6.1gal)
Dry Weight
384kg(847lb)(L) 359kg(792lb)(S)
Wheelbase
145cm(57.1")(L) 130cm(51.2")(S)
Seat Height
60cm(23.6")(L) 93cm(36.6")(S)
Ground Clearance
27cm(10.6")
Vehicle Size（Length/Width/Height）
92.5 x 50.4 x 56.3" 234 x 128 x 143cm(L) 86.7 x 50.4 x 52" 220 x 128 x 132cm(S)
Other Features
Seats
2 Seats(L) 1Seat(S)
Colors
◎ Electric White & Tensive O&R ◎ Bold Black & Dream Green ◎ Innovative Grey & Smart Blue ◎ Prairie Camo
Winch
2500lb
Lights
LED
Break
Four-wheel Hydraulic Disc Brake(L) Three-wheel Hydraulic Disc Brake(S)
Cooling System
Duel Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System
Frame
High-strength chromium-molybdenum steel frame
Smart Electronic Power Steering(EPS)
Three Modes: Standard / Comfort / Sport(L) Three Models: Standard / Comfort / Sport(S)
