ARES ENDURANCE
BatteryCapacity:35Ah / 2590Wh
Cells:LG Premium 21700 lithium cellsFeatures:Removable, can be charged when installed in bike or separately.Voltage (nominal):74V
Brake modesBrake mode 1:Motor brake with energy regenerationBrake mode 2:Freewheel, no motor brake
BrakesDisc:Stainless steel, 210mm diameter, 2.3mm thicknessType:Disc brakes, Four piston calipers, alloy levers. Hand lever for front- and rear brake.
Charging0-:3 hours0-80%:2 hoursType:Variable voltage External charger for 100V-240V outlets
ControllerFeatures:Best-in-class power density and state-of-the-art motor control algorithms.MeterLCD instrument panel
DrivetrainChain:420 chain with DXElectric motor:Internal Rotor Permanent Magnet Synchronous MotorFront sprocket:11 teethNominal power:4 kWPeak power:4 kW**Rear sprocket:58 teethTorque (motor axle):46 N·mTorque (wheel):242 N·mType:Direct drive, chain

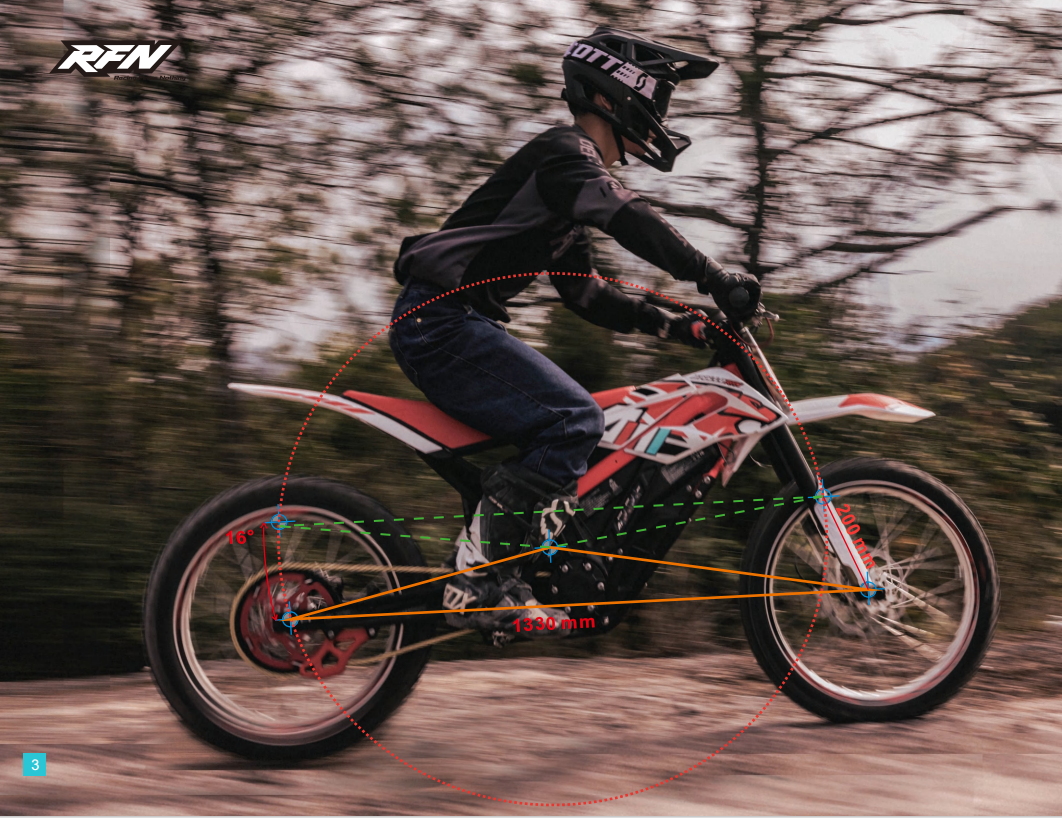

DimensionsFork angle:24°Ground clearence:320mm - 12.60''Offset:15mm in triple clamps, 45mm in forksSeat height:860mm - 33.86''Trail:111mm - 4.37''Wheel base:1330mm - 52.36''
Fenders & BodyworkMaterial:PP/ABS PlasticLampsHeadlights, Rear Brake Lights, Front and Rear Turn Lights FrameBuild:6082 aluminium - extruded, forged and iron frameSeat cushionRed, leather Front suspensionTravel:200mmType:Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper.
HandlebarMaterial:6061 aluminiumRise:22mmWidth:760mm Rear suspensionTravel:75mmType:240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable.
RegulatoryClassification:Road EditionLicense:CE / EEC / CCC / DOT / FCC Ride modesRide mode 1:Turtle Mode: The Ultimate Energy-Saving Exploration Mode. Current Limit: 30A. Battery Life: 4 HoursRide mode 2:Rabbit Mode: Endurance or Active Off-Road Riding. Current Limit: 45A. Riding Time: 3 HoursRide mode 3:Rocket Mode: Track and Competition Mode. Current Limit: 55A. Riding Time: 2.5 HourRide mode 4:Reverse mode: Limited to 9 km/h
Speed & RangeRange:160 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure).Top speed:45km/h | 28mph
WeightBattery:15 kgDry:78 kgMax. permittable load:199kgG.W.:99KG (carton plus iron frame)G.W.:105KG (carton plus board)
Wheels & TiresHubs:Forged and CNC aluminium RFN hubs with 20mm axleRims:F 19"/ R 18" (Motorcycle standard), 7116 aluminiumTires:KENDA 2.75-19" / 3.0-18" Light duty off-road & road hybrid tires
SpecificationVehicle dimension :1937 x 770 x 1080mmVehicle packing size :1695 x 325 x 855mm
