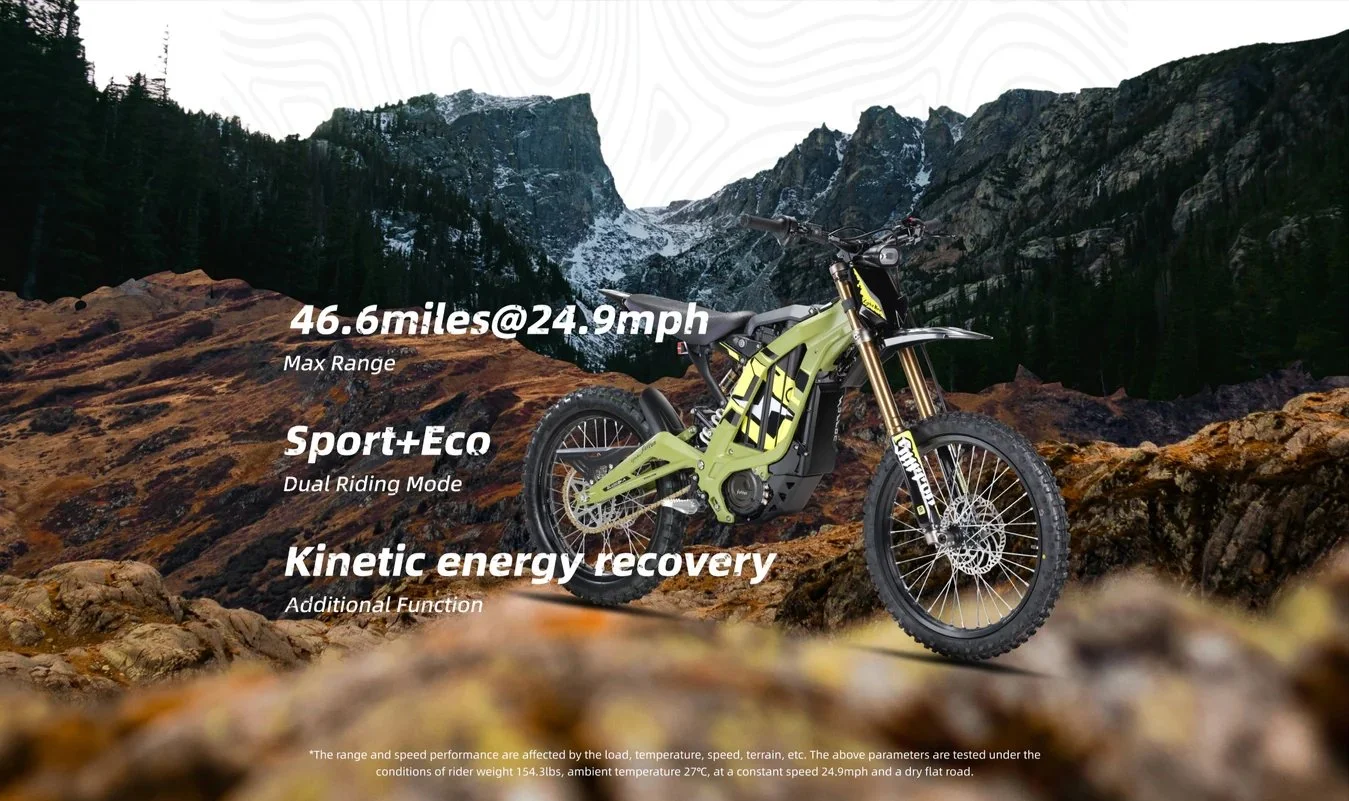

Range LBX 75km (Cruising @40km/h)
Top Speed 75km/h

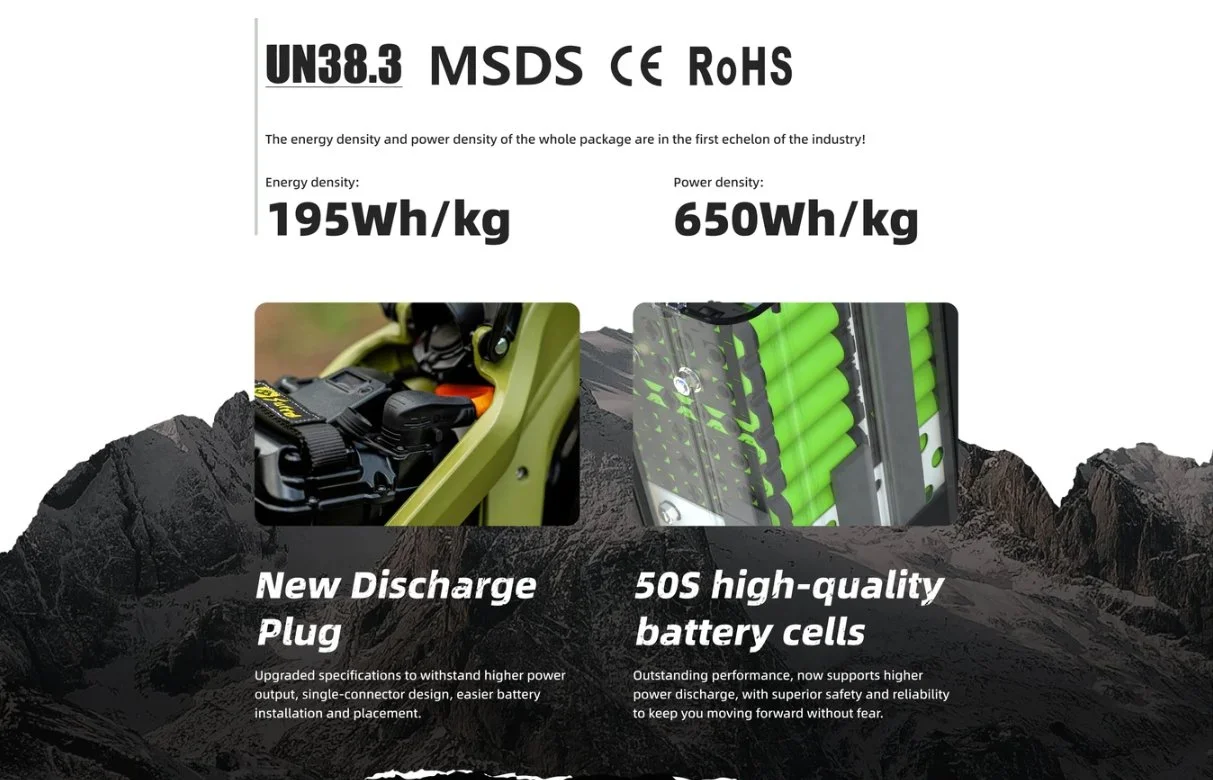

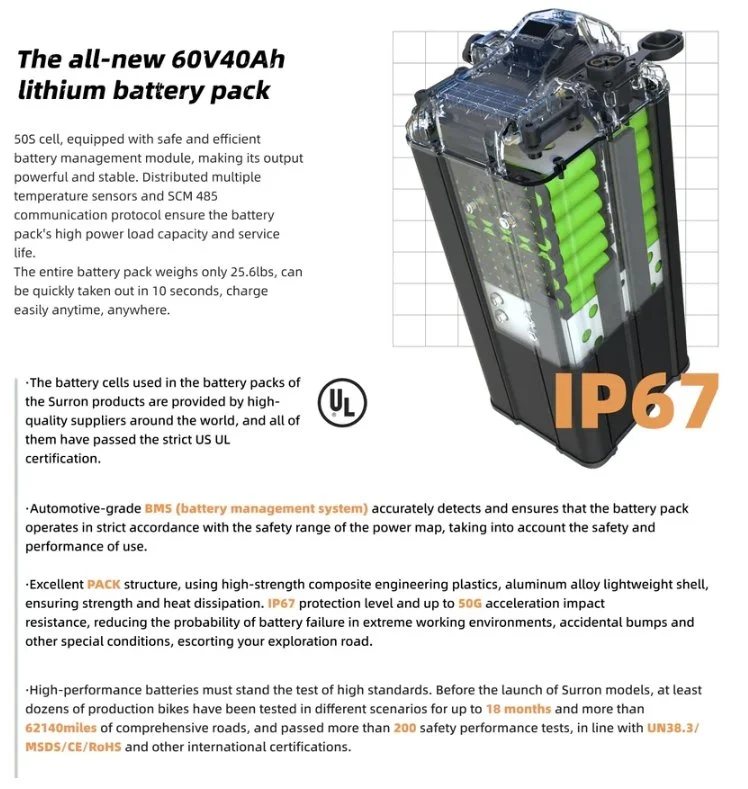

LBX 60V / 2,400Wh, 40AH Premium Lithium cells
Battery is removable and can be charged in bike or separately
Mode 1 Eco mode: The ultimate mode energy conservation exploration
Mode 2 Sport mode: Maximum torque and speed
Hill Ability Up to 80% Inclines
Horn Included
USB Port Included
Lights Front LED & Rear Tail Light (Always On - No Off Switch)
Fenders Rear Only (Attached to Seat)
Warranty 1 Year
Front and Rear Bilateral 4-piston hydraulic disc, 203mm with Electric Regenerative Braking
3-4hrs with 10A Fast Charging
LCD Multi-Function (ODO, Trip, Battery, Speed, Top Speed etc)
FOC Sine Wave X Controller
Electric Motor BLDC Mid Motor
Transmission Belt & Chain - Ratio 1: 7.6
Rated Power 3 kW
Peak Power 6 kW
Max Torque 250 N·m
Throttle Fly by Wire Twist

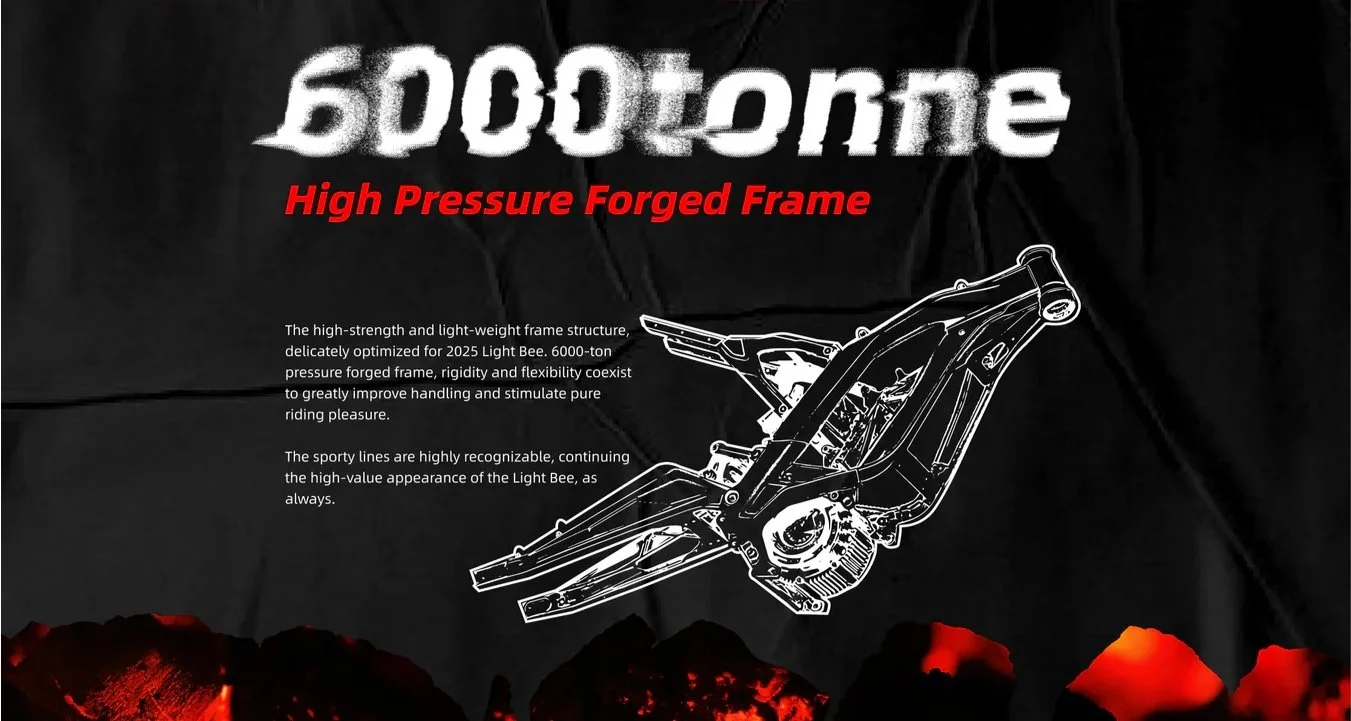

Frame 6061 T4 & T6 Forged Aluminium Frame
Handlebars 6061 aluminium, 780mm length

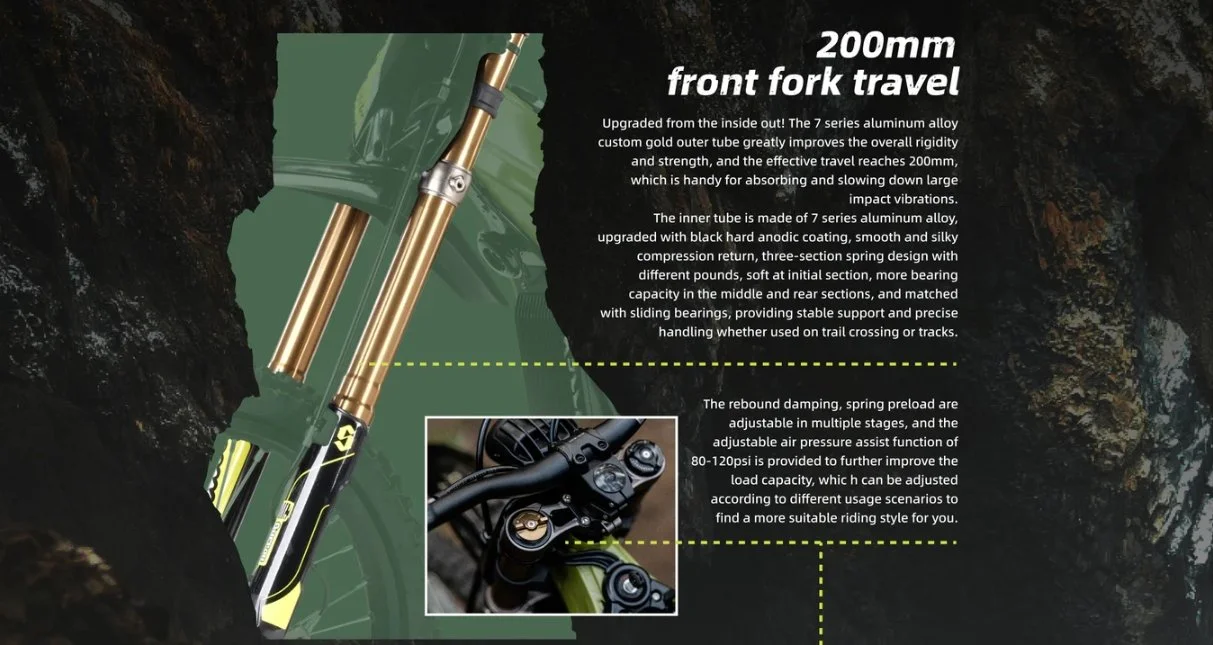

Front KKE Upside Down Fork Hydraulic Absorber with 200mm travel
Rear KKE Adjustable with Intersect TR, 87mm travel
Rims F&R 19x1.4" Aluminium Spoke Wheels
Tyres F&R 70/100-19 CST off-road mud tyre
Overall 1,860 x 780 x 1,050mm
Seat Height 830mm
Ground Clearance 270mm
Wheel Base 1,255mm

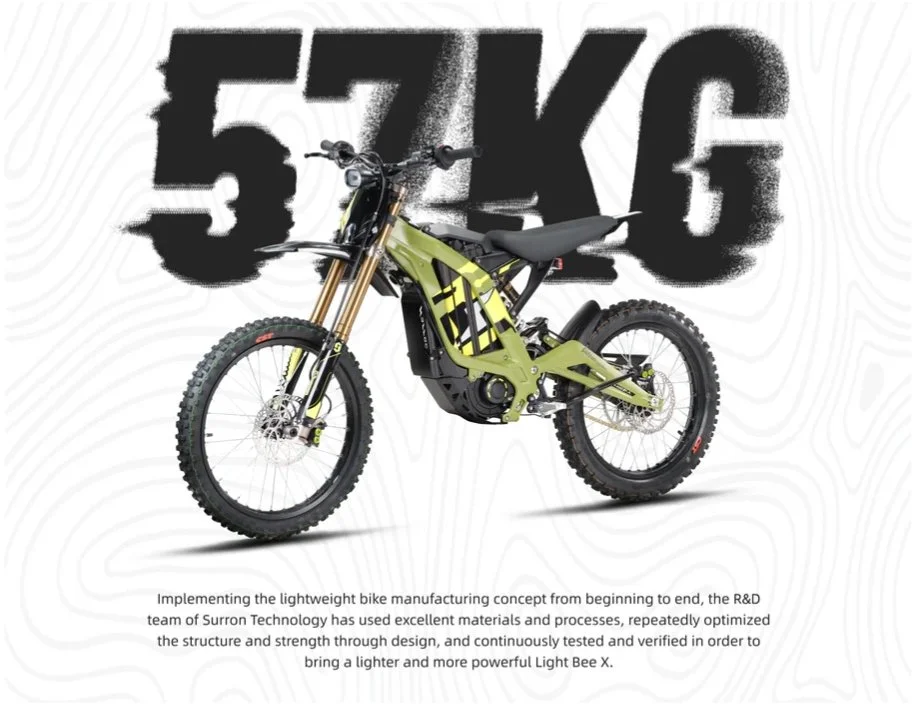

N.W of Complete Bike 50 kg
Max Loading 100 kg
In the Box 1x Bike, 10A Fast Charger, Front Number Plate, 2 Keys & Manual (Fenders, Chain Guards etc are not standard inclusions)
*Disclaimer - Range achievable varies on ride conditions, loading, motor use and many other factors. Range Calculations should be used as a guide only and are based off consistent travel at low speed in ideal conditions.
