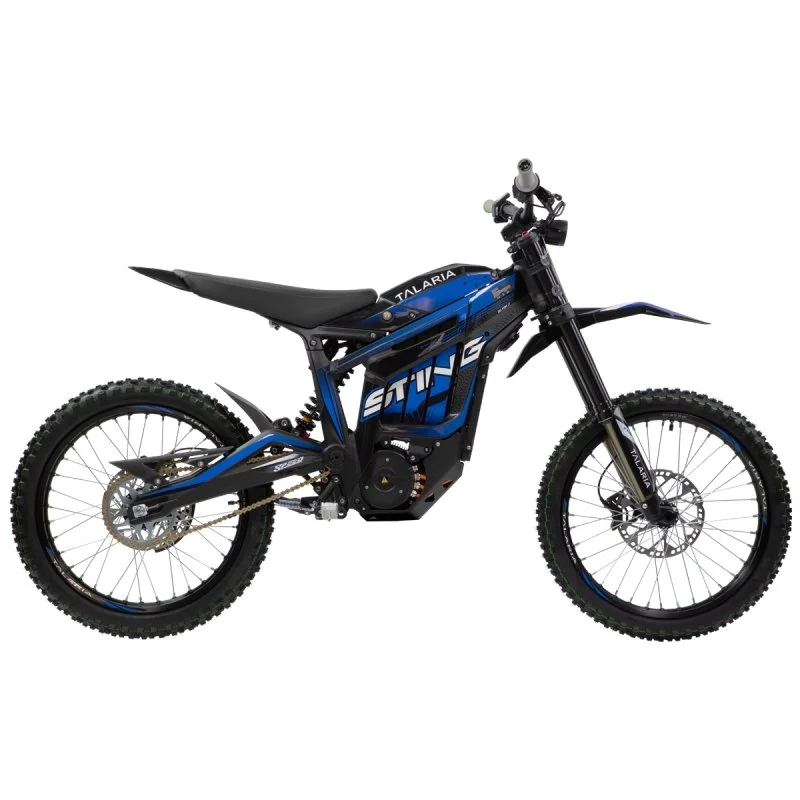

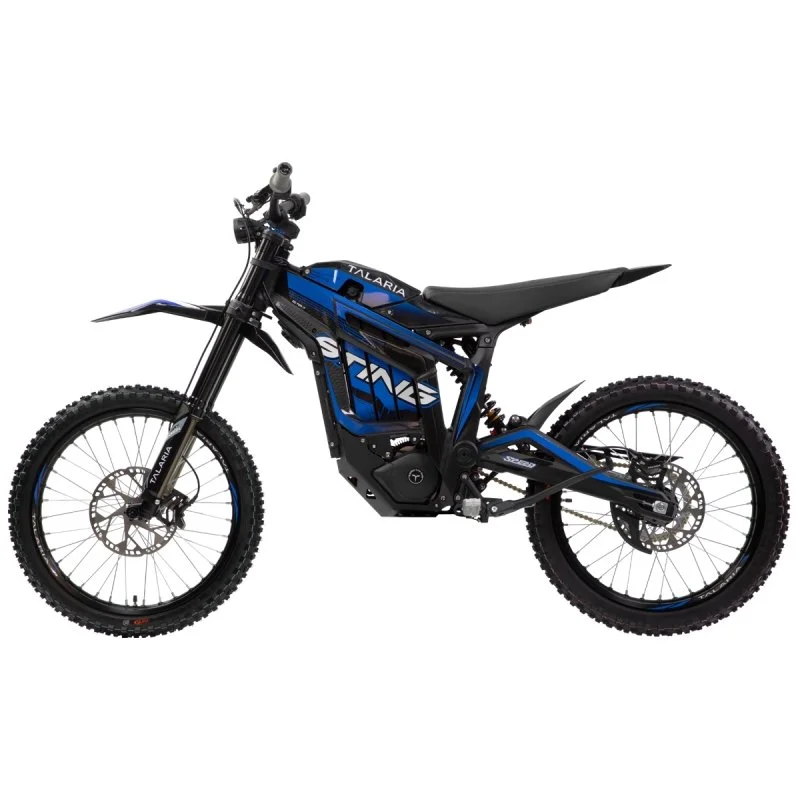

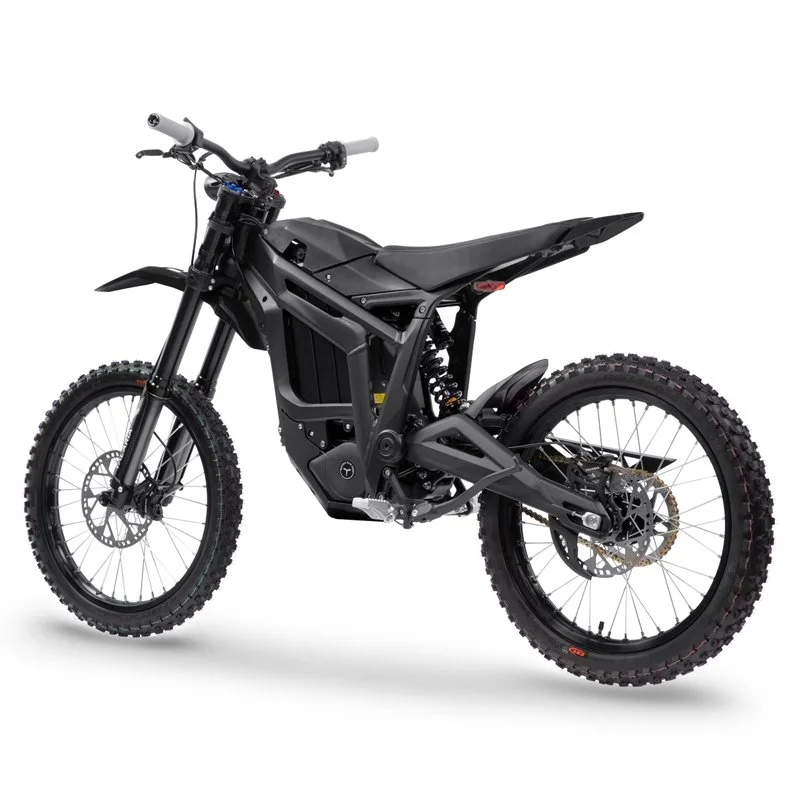

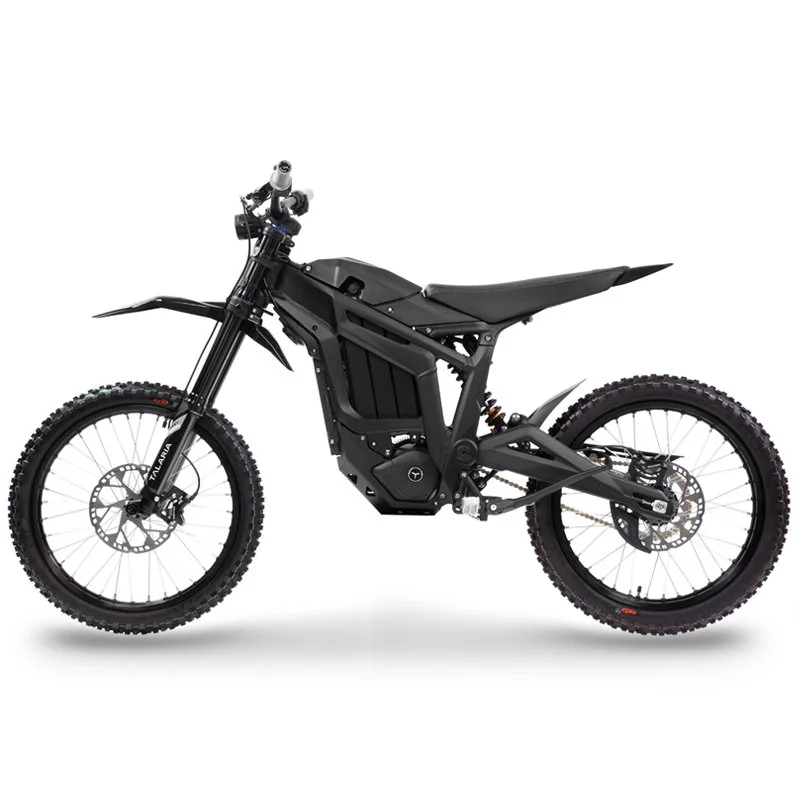

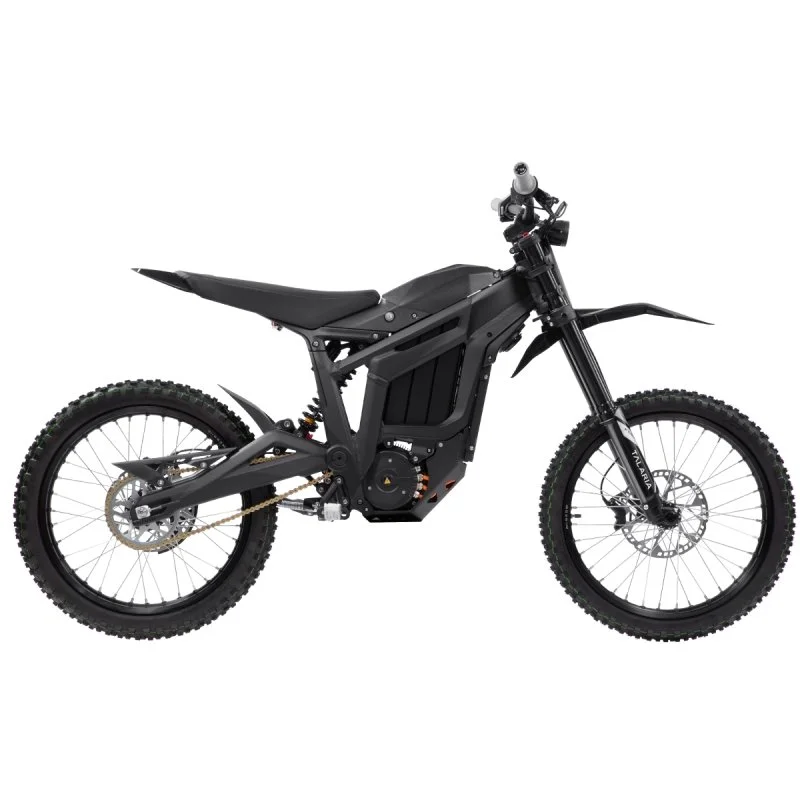

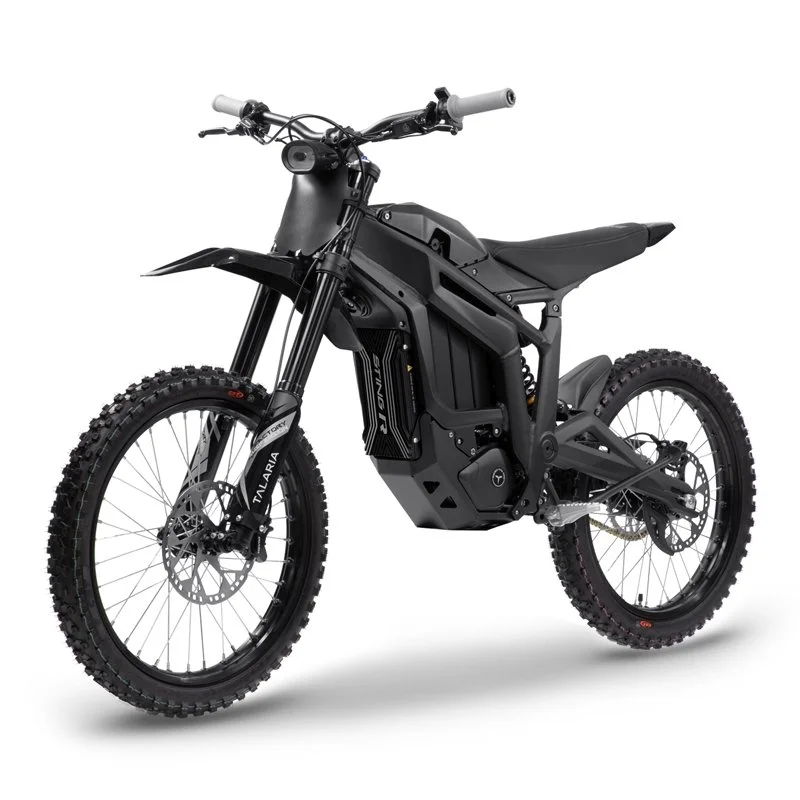

Sting R (MX4)

TALARIA STING R MX4 HIGHLIGHT

• +10% Peak Power over the 2023 Talaria Sting R MX4

• 45AH Improved Battery offering best-in-class range and battery life

• Gearbox providing silent and reliable power transmission (No belt to change)

• Regenerative Braking (Can be adjusted easily on the display for optimum performances)

• Fast Charging Time (3 Hours)

• Improved Battery Connector

• Braking System : 220mm Upgraded Brake Rotors

• DC IPM Improved Motor with 94% efficiency

• Suspension : Fastace or Talaria Factory

• Rear Brake Disc Guard

• Upgraded 125 Amp circuit breaker

WARRANTY

Talaria will pay for all material costs connected with repairing or replacing any part or accessory shown to be faulty in material during normal use and maintenance. This limited warranty covers the initial retail purchaser. This limited warranty is valid for one year from the initial retail sale date of a new Talaria from an authorized dealer.

DISPLAY
The dash incorporates a high-contrast OLED display, which provides riders with excellent info while using little electricity. With may connection, the dash may exchange data with the battery pack’s BMS and motor controller. The display menu shows a variety of statistics, including top/average speed, range, battery data, riding mode, fault codes, regen level, and more. The dash is also configurable, allowing for alternative settings for wheel size, sprocket size, engine regen levels, and switching between KM/H and MPH to improve the bike’s compatibility.

BATTERY

TALARIA STING R MX4 battery is a 60V 45Ah lithium-ion pack with a capacity of 2700 watt-hours and can be readily swapped. In seconds, the power packs may be replaced for another fully charged power pack, providing endless range. With electric automotive grade LG 21700 lithium-ion battery cells, a cutting-edge programmable BMS, and an optimized internal structure, this battery pack ensures that the bike provides you with safe, high-performance off-road riding.

Included Upgrades:

• 220mm x 2.3mm thick rotors both front and rear (stock is 203mm x 2mm)

• Upgraded Brake Pads

• 4 Piston Hydraulic Brakes

• Improved throttle and tuning for smooth and predictable response

• The motor has an encoder (instead of hall sensors) for ultra smooth throttle response.

• Improved and strengthened Gear box (oil only needs to be changed every 3-5 thousand miles)

• IPM Motor Rated for High Power and 94% efficiency

• Thick 3.25 inch rear tire

• 45Ah 60v battery with LG 21700 Cells

• Rear Brake Rotor Protector

• Foot Peg Support Brace

• Full wrap sticker kit (not installed)

• Higo connectors on the ebrake shut off for easy disconnect

• OLED full function display

• Rear Brake Rotor Guard

• Talaria or Fast Ace fork (depending on supply) upgrades any of the forks it uses to customize them for this bike.

OTHER FEATURES

12 Amp battery charger

4 position Regenerative braking which you can adjust while riding

145 pounds

Improved Braking System

Talaria realizes that if they want to develop their bike to be faster and more powerful, they must improve the brake system. First and foremost, they chose larger and thicker rotors both front and rear. 220mm x 2.3mm versus the previous 203mm x 2.0mm. This provides 20% better stopping power and heat dissipation. The brake pads have been upgraded to be more durable and free of squeaks. Four levels of regenerative braking that may be adjusted on the fly improve the bike’s efficiency and reduce the strain on the mechanical braking system. By employing regenerative braking correctly, you can enhance your range by up to 5% while significantly reducing brake wear and tear. Talaria Sting R MX4
